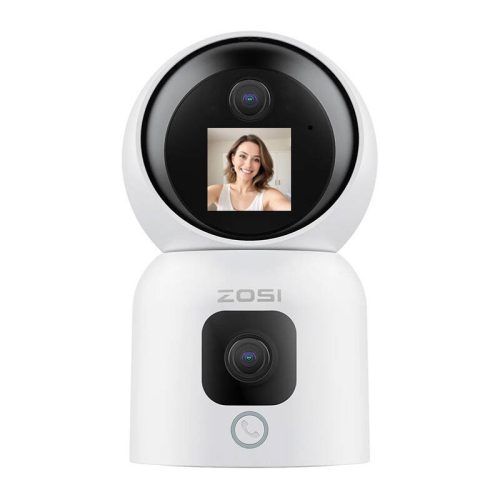

ZOSI C528M WiFi 5G Dual 6MP indoor IP camera.
Keep tabs on what's happening at home in your absence. The ZOSI C528M indoor IP camera provides excellent 6MP image quality and a wide range of features, such as automatic motion tracking, to guarantee security and convenience in your home. In addition, you can communicate with your household members thanks to two-way audio support. What's more, the camera is easy to use, and the kit includes the necessary accessories for installation and proper operation of the equipment.
Detailed image in all conditions
The ZOSI C528M camera is equipped with a 6 MP (2304*1296) sensor, which provides crystal clear and detailed images. The 1/3.0" progressive scan CMOS sensor and 4mm lens at F2.0 guarantee excellent detail even in low light. Automatic switching between day and night modes, thanks to its sensitivity to soft light, enables night monitoring up to 10 meters.
Simple control and advanced features
The ZOSI C528M supports dual video transmission, allowing simultaneous transmission of 3MP (23041296) and D1 (640360) quality video. The 1.44-inch screen displays date, time, weather, temperature and humidity. In addition, two-way video calling and automatic motion tracking features make the camera ideal for everyday use in the home.
Peace of mind and protection with smart features
The ZOSI C528M camera uses the H.265 video compression standard, which optimizes the use of bandwidth and recording space. It supports various types of recording, including continuous and alarm recording, and offers local Micro SD card storage (up to 128GB) and cloud storage. Intelligent motion and intrusion detection features and the ability to set up to 5 privacy areas ensure complete security.
Durability and versatility
The camera is powered by a USB-C cable, which you'll find included along with a power adapter. What's more, the ZOSI C528M is rated to operate in temperatures from -10°C to 60°C and humidity up to 95% (non-condensing). In turn, the included components make it easy to mount it on a flat surface, ceiling or wall.
Included
- camera
- mounting base
- template for mounting the base
- power adapter with USB-A to USB-C cable
- screws and wall plugs
- user manual
| Manufacturer | ZOSI |
|---|
| Model | C528M |
|---|
| Camera | |
|---|
| Pixels | 6 MP (2304*1296) |
|---|
| Image sensor | 1/3.0" CMOS with progressive scanning |
|---|
| Lens | 4 mm at F2.0 |
|---|
| Lens interface | M12 |
|---|
| Luminance threshold | Sensitivity to soft light: Switching from day to night mode: <3Lux, Switching from night to day mode: >9 lux |
|---|
| Infrared | x4 |
|---|
| Warm light | None |
|---|
| Day / night mode / night viewing distance | ICR / 10 m |
|---|
| Frame rate | 15fps, adaptive network transmission frame rate |
|---|
| Dual transmission | Main transmission: 3MP (2304*1296) sub: D1(640*360) |
|---|
| PTZ camera | |
|---|
| Resolution / image sensor | 3MP (2304*1296)/1/3.0 "CMOS with progressive scanning |
|---|
| Lens type / lens interface | 4.0mm F2.0/M12 |
|---|
| Minimum illumination | Soft light sensitivity: > 3Lux (daylight mode): < 3Lux (infrared light on) |
|---|
| Infrared lights / warm light | 2 pieces / none |
|---|
| Tryb dzienny / nocny / odległość widzenia w nocy | ICR / 10m |
|---|
| Podwójna transmisja | 15 frames per second, adaptive network transmission frame rate |
|---|
| Image settings | Main transmission: 3MP (2304*1296), sub: D1 (640*360) |
|---|
| Screen size/resolution | 1.44 inches /128*128 |
|---|
| Video compression standard | H.265 |
|---|
| Screen interface | SPI AW |
|---|
| Display functions | Date and time display, weather/temperature and humidity display, two-way video connections |
|---|
| Video compression standard / bit rate | H.265/H.265+ master profile / 32Kbps~2Mbps |
|---|
| Video aspect ratio | 16:9 |
|---|
| Privacy area setting / ROl | Supported (up to 5 areas) / Supported |
|---|
| Image settings / OSD watermark | HD/SD switching support, image duplication / Supported |
|---|
| Audio input/output | Built-in speaker with microphone |
|---|
| Audio compression standard | Support for HD/SD switching, image duplication |
|---|
| White balance / gain control | G.711A |
|---|
| Noise reduction | Digital 3D |
|---|
| Backlight compensation | Supported |
|---|
| Wide dynamic range | Supported |
|---|
| Dynamic range / signal-to-noise ratio | 81dB / 38dB |
|---|
| Status indicator | Button with white circle (Slow flashing: no network, Fast flashing: call/received call, Continuous light: network connection) |
|---|
| Signal-to-noise ratio / flash | Supported / GD 1G |
|---|
| WiFi | 2.4 GHz/5 GHz EEE 802.11a/b/g/n |
|---|
| Protocol | TCPIP, HTTP, DHCP, DNS, MQTT, P2P, ONVIF, RTSP |
|---|
| Storage | Cloud storage with the ability to switch between dual-lens recording |
|---|
| Software / max. number of users | ZOSI Smart (Android/iOS) AVSS (PC/MacBook) / 5 users |
|---|
| Smart detection | Detection of motion, human, intrusion, etc. |
|---|
| Video connection | Press or gesture with a hand movement to call family members at any time for a two-way video call |
|---|
| People tracking / audio | Automatic people tracking / two-way audio |
|---|
| Night vision type / alarm | Infrared night vision |
|---|
| Recording types / modes | Continuous recording, alarm recording Master transmission / slave transmission |
|---|
| One-button reset / Local memory | Supported / Micro SD card (max. 128 GB), NVR cloud storage |
|---|
| Power supply / power consumption | DC 5W/2A (type C interface) / 5W MAX |
|---|
| Splash protection / installation | Waterproof / Flat surface / ceiling / wall mounting |
|---|
| Operating temperature and humidity | -10°C to 60°C, humidity below 95% (non-condensing) |
|---|
| Dimensions | 152×90×90 mm |
|---|
| Weight | 285g |
|---|
